Smart views

Build fully custom collection views using JavaScript, HTML, and CSS, beyond what the table layout offers.

Smart Views let you replace the default table view with any UI you can code. Display orders on a map, events in a calendar, pictures in a gallery, all powered by your real data and integrated with Forest actions.

What is a smart view?

A Smart View is a Glimmer Component composed of three files: a JavaScript component, an HTML/Handlebars template, and a CSS stylesheet. Forest hosts and runs this code directly in your back-office.

You don’t need to know Ember.js to write a Smart View. The examples below cover all the patterns you’ll need. For advanced use, refer to the Glimmer Component and Handlebars Template documentation.

Your code must be compatible with Ember 4.12.

Creating a smart view

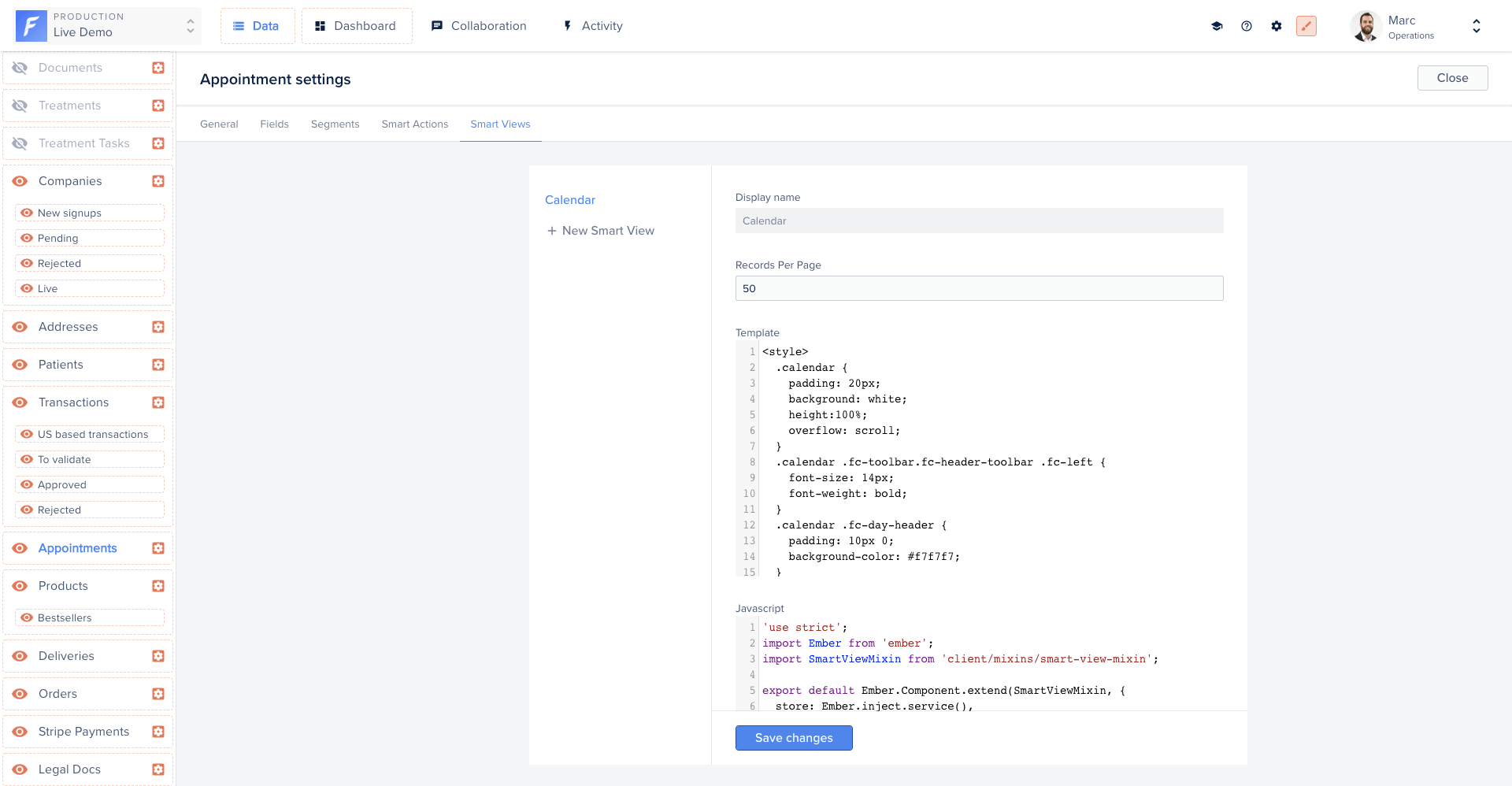

Forest provides an online editor to write your Smart View code. Access it from the collection’s Settings, then the Smart Views tab.

Available properties

Forest automatically injects the following properties into your Smart View:

Property	Type	Description
collection	Model	The current collection
currentPage	Number	The current page
isLoading	Boolean	Indicates if the UI is currently loading records
numberOfPages	Number	The total number of available pages
records	Array	Your data entries
searchValue	String	The current search value

Available actions

Forest also injects the following actions:

Action	Description
deleteRecords(records)	Delete one or multiple records
triggerSmartAction(collection, actionName, record)	Trigger an action defined on the specified collection on a record

Working with records

Iterating over records

Access all records from the @records property and iterate in your template:

{{#each @records as |record|}}
{{/each}}

Accessing field values

Access field values using the forest- prefix before the field name:

{{#each @records as |record|}}
  <p>Status: {{record.forest-shipping_status}}</p>
{{/each}}

Accessing belongsTo relationships

Accessing a belongsTo relationship works the same as a field. Forest automatically fetches the related data via API when needed:

{{#each @records as |record|}}
  <h2>
    Order to
    {{record.forest-customer.forest-firstname}}
    {{record.forest-customer.forest-lastname}}
  </h2>
{{/each}}

Accessing hasMany relationships

Same behavior applies for hasMany relationships:

{{#each @records as |record|}}
  {{#each record.forest-comments as |comment|}}
    <p>{{comment.forest-text}}</p>
  {{/each}}
{{/each}}

Refreshing records

Call @fetchRecords to reload the current page of records:

<button {{on 'click' @fetchRecords}}>
  Refresh
</button>

Fetching records with custom filters

Use the store service to query any collection with custom filters. In the example below, a calendar view fetches appointments within a date range:

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { tracked } from '@glimmer/tracking';

export default class extends Component {
  @service store;
  @tracked appointments;

  async fetchData(startDate, endDate) {
    const params = {
      filters: JSON.stringify({
        aggregator: 'And',
        conditions: [
          { field: 'start_date', operator: 'GreaterThan', value: startDate },
          { field: 'start_date', operator: 'LessThan', value: endDate },
        ],
      }),
      timezone: 'America/Los_Angeles',
      'page[number]': 1,
      'page[size]': 50,
    };

    this.appointments = await this.store.query('forest_appointment', params);
  }
}

template.hbs

{{#each this.appointments as |appointment|}}
  <p>{{appointment.id}}</p>
  <p>{{appointment.forest-name}}</p>
{{/each}}

Query parameters

Parameter	Type	Description
filters	Object	A stringified JSON object. A single filter uses { field, operator, value }. An aggregation uses { aggregator: "and"/"or", conditions: [...] }. Operators: less_than, greater_than, equal, after, before, contains, starts_with, ends_with, not_contains, present, not_equal, blank
timezone	String	Timezone string, e.g. America/Los_Angeles
page[number]	Number	Page number to fetch
page[size]	Number	Number of records per page

Deleting records

The deleteRecords action deletes one or multiple records. A confirmation dialog is shown automatically.

template.hbs

{{#each @records as |record|}}
  <Button::BetaButton
    @type='danger'
    @text='Delete record'
    @action={{fn this.deleteRecords record}}
    @async={{false}}
  />
{{/each}}

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

Triggering actions

Action triggering inside the Smart View editor may not work correctly, as not all context is available. Test action execution from the Smart View applied to the collection view.

Use triggerSmartAction to invoke an action directly from your Smart View.

template.hbs

<Button::BetaButton
  @type='primary'
  @text='Reschedule appointment'
  @action={{fn this.triggerSmartAction @collection 'Reschedule' record}}
/>

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

The triggerSmartAction function signature:

function triggerSmartAction(
  context,
  collection,
  actionName,
  records,
  callback = () => {},
  values = null,
)

Argument	Description
context	Reference to the component, use this
collection	The collection where the action is defined
actionName	The action name
records	An array of records or a single record
callback	Function executed after the action completes, receives the action result as its only parameter
values	Object containing values to pre-fill the action form fields

To pass values programmatically and skip the action form:

template.hbs

<Button::BetaButton
  @type='primary'
  @text='Reschedule appointment'
  @action={{fn this.rescheduleToNewTime record}}
/>

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';
import { tracked } from '@glimmer/tracking';

export default class extends Component {
  @tracked newTime = '11:00';

  @action
  triggerSmartAction(actionName, records, values) {
    return triggerSmartAction(
      this,
      this.args.collection,
      actionName,
      records,
      () => {},
      values,
    );
  }

  @action
  rescheduleToNewTime(record) {
    this.triggerSmartAction('Reschedule', record, { newTime: this.newTime });
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

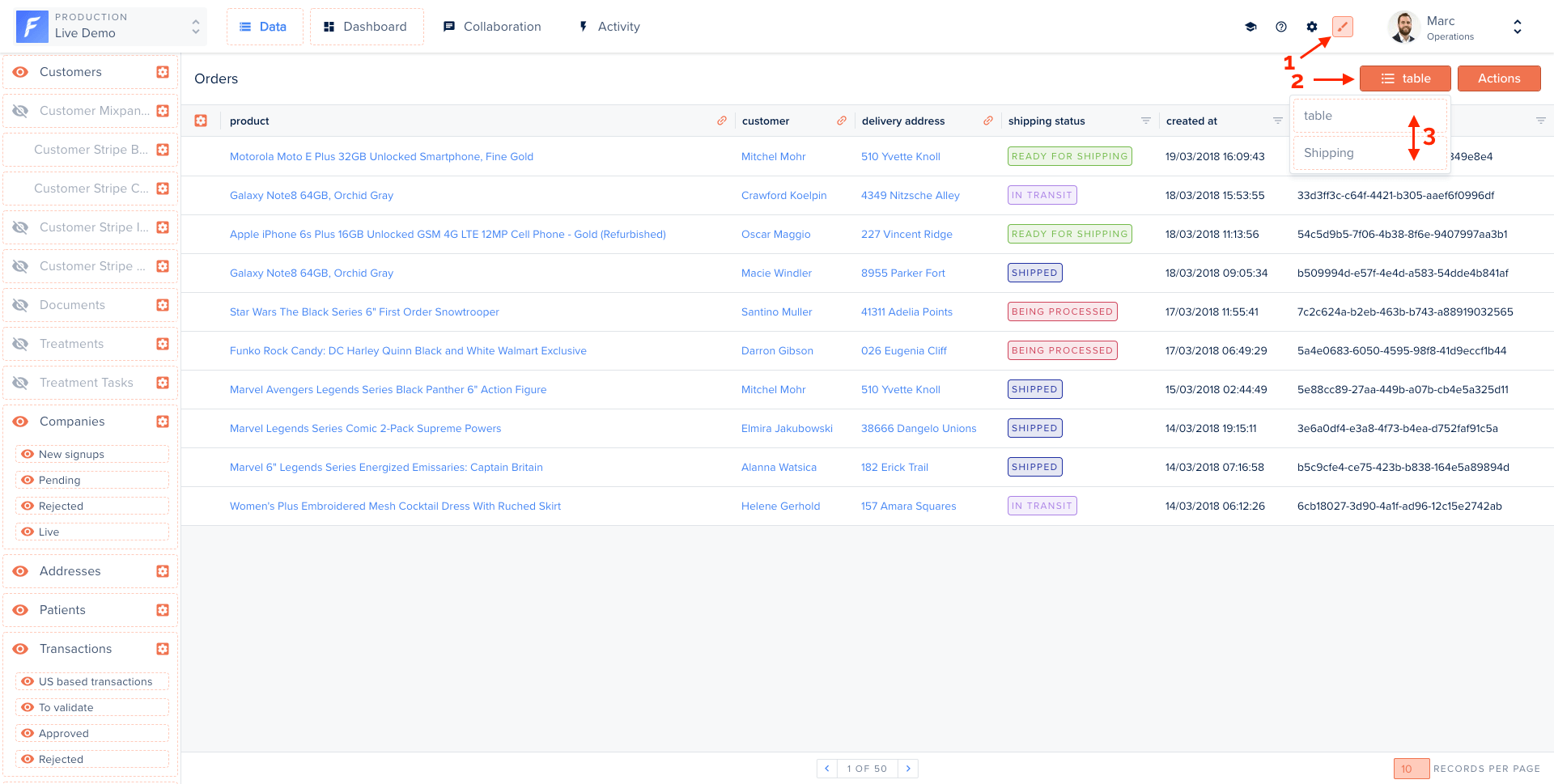

Applying a smart view

To activate a Smart View on a collection:

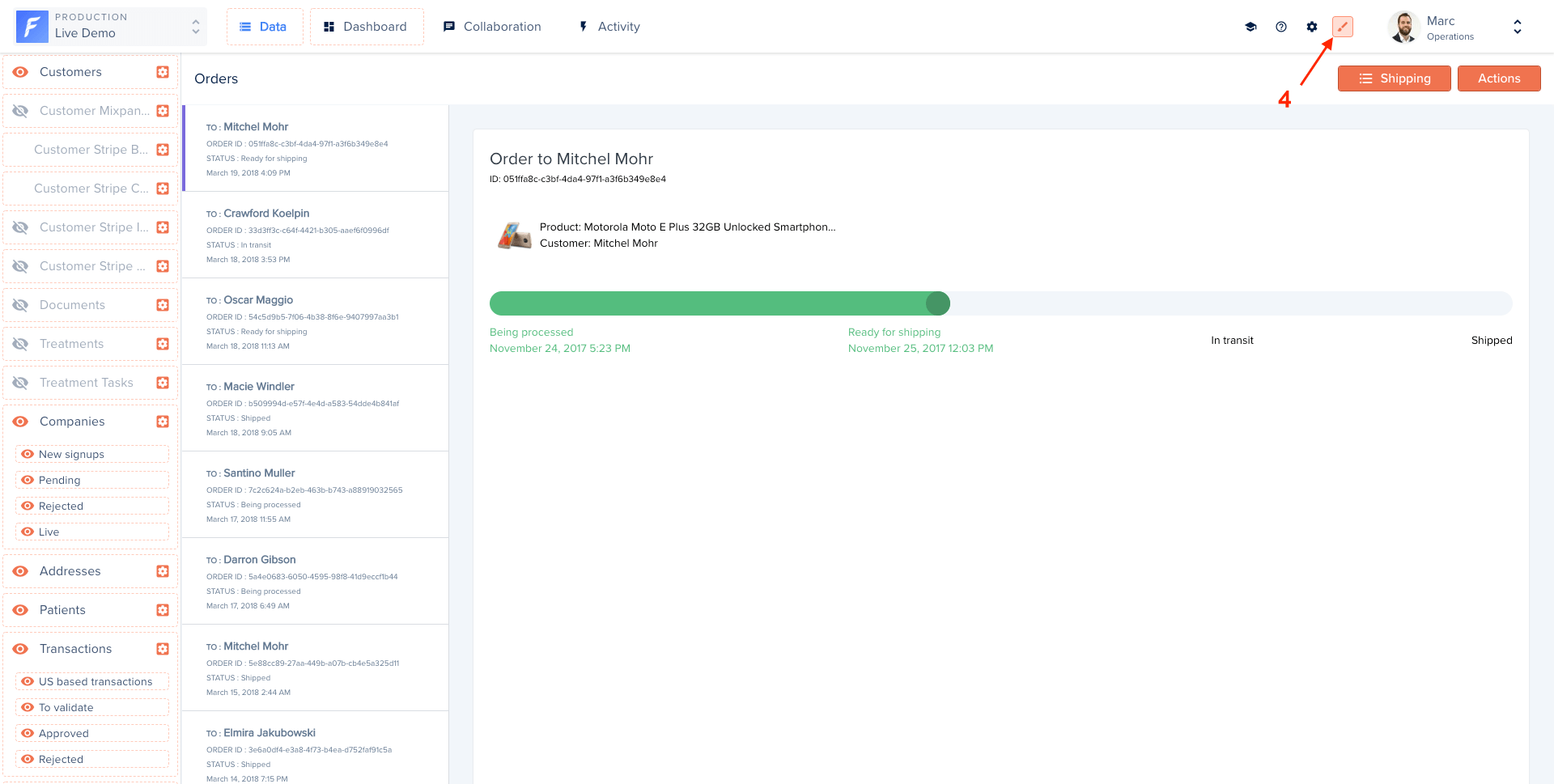

1. Enable the Layout Editor mode (top navigation bar)
2. Click the view type button (table icon)
3. Drag and drop your Smart View to the first position in the dropdown

The view refreshes automatically. Disable Layout Editor mode when done.

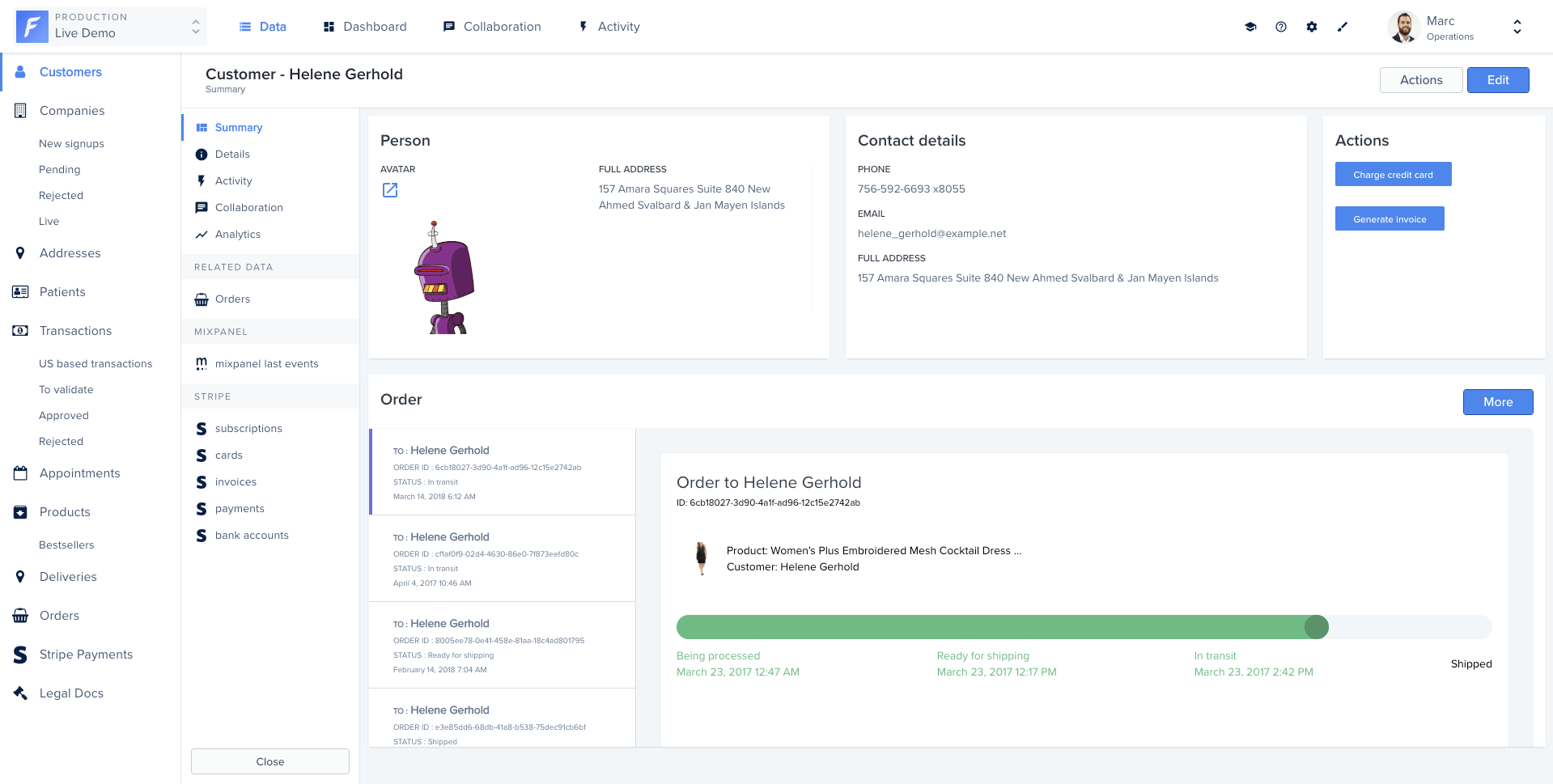

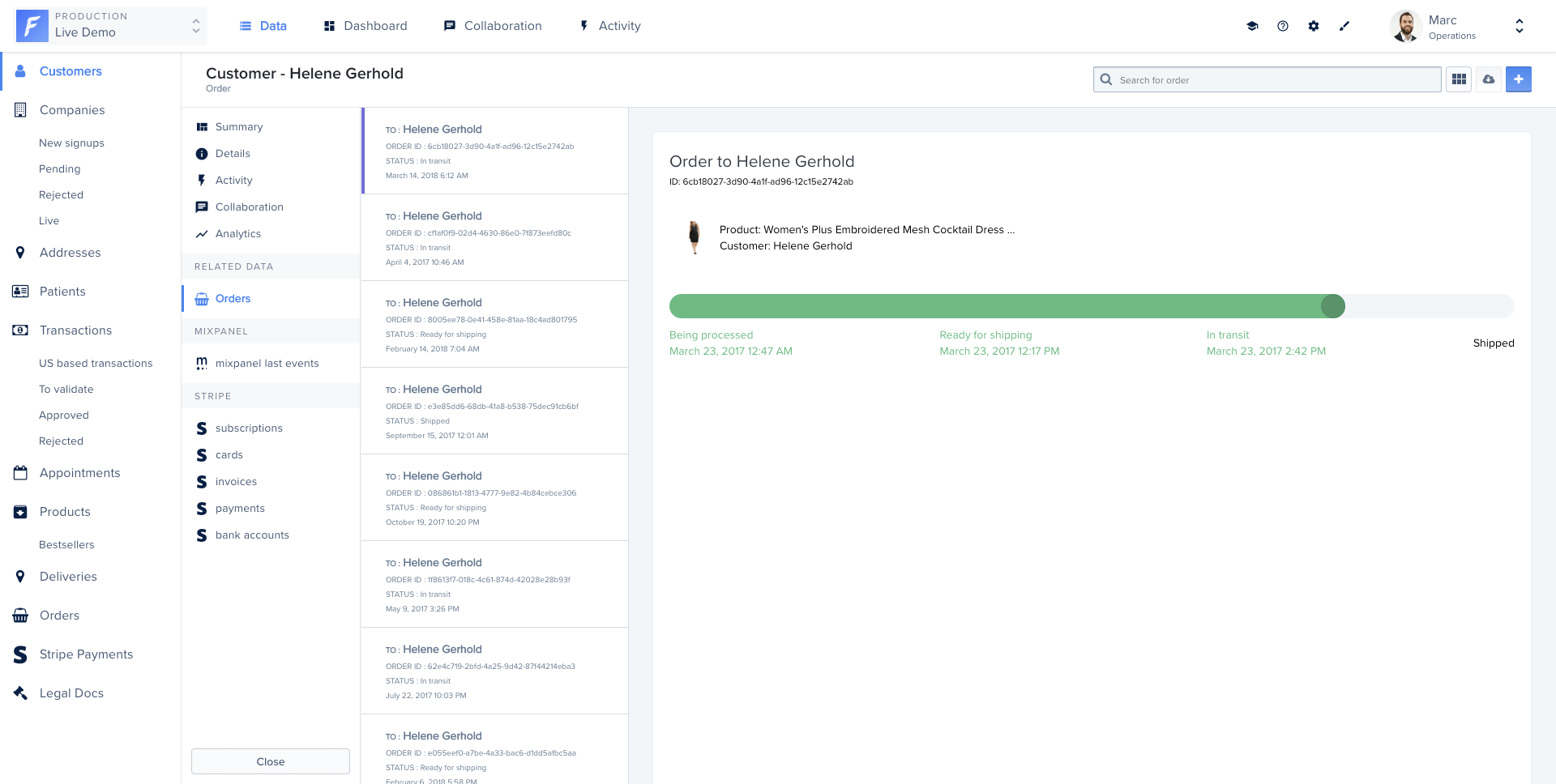

Once a Smart View is applied to a collection, it also appears in related data panels and summary views. It is not currently possible to set different views for the table, summary, and related data contexts independently.

Examples

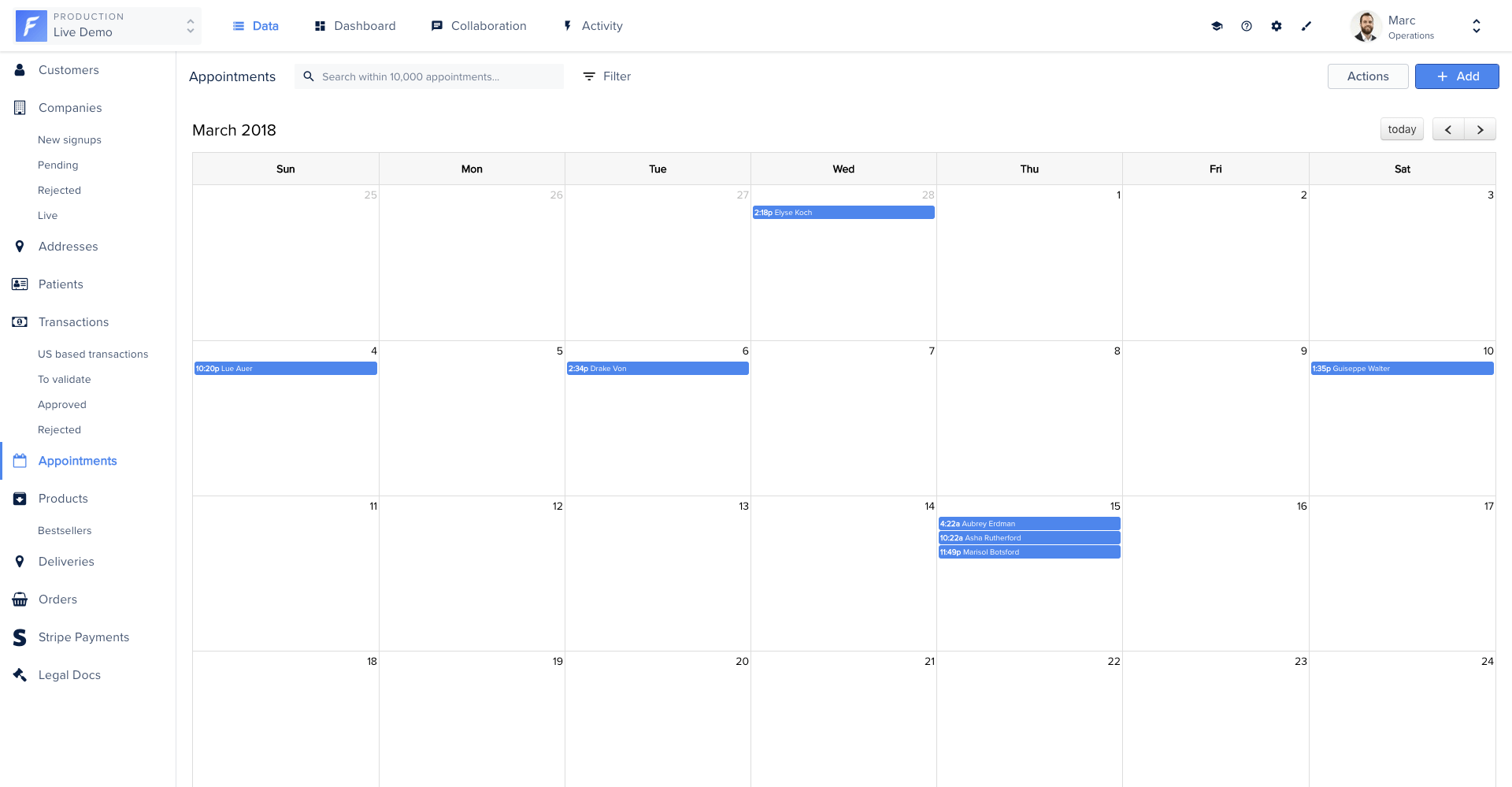

Calendar view

Displays collection records on a calendar using FullCalendar. The component loads the library from CDN and uses date-range conditions to fetch relevant records.

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { guidFor } from '@ember/object/internals';
import {
  triggerSmartAction,
  deleteRecords,
  loadExternalStyle,
  loadExternalJavascript,
} from 'client/utils/smart-view-utils';

export default class extends Component {
  @service() router;
  @service() store;

  @tracked conditionAfter = null;
  @tracked conditionBefore = null;
  @tracked loaded = false;

  constructor(...args) {
    super(...args);
    this.loadPlugin();
  }

  get calendarId() {
    return `${guidFor(this)}-calendar`;
  }

  async loadPlugin() {
    loadExternalStyle(
      'https://cdn.jsdelivr.net/npm/fullcalendar@6.1.8/index.global.min.css',
    );
    await loadExternalJavascript(
      'https://cdn.jsdelivr.net/npm/fullcalendar@6.1.8/index.global.min.js',
    );
    this.loaded = true;
    this.onInsert();
  }

  @action
  onInsert() {
    if (!this.loaded || !document.getElementById(this.calendarId)) return;

    this.calendar = new FullCalendar.Calendar(
      document.getElementById(this.calendarId),
      {
        allDaySlot: false,
        minTime: '00:00:00',
        initialDate: new Date(2018, 2, 1),
        eventClick: ({ event }) => {
          this.router.transitionTo(
            'project.rendering.data.collection.list.view-edit.details',
            this.args.collection.id,
            event.id,
          );
        },
        events: async (info, successCallback) => {
          const field = this.args.collection.fields.findBy('fieldName', 'start_date');

          if (this.conditionAfter) {
            this.args.removeCondition(this.conditionAfter, true);
            this.conditionAfter.unloadRecord();
          }
          if (this.conditionBefore) {
            this.args.removeCondition(this.conditionBefore, true);
            this.conditionBefore.unloadRecord();
          }

          const conditionAfter = this.store.createFragment('fragment-condition');
          conditionAfter.set('field', field);
          conditionAfter.set('operator', 'is after');
          conditionAfter.set('value', info.start);
          conditionAfter.set('smartView', this.args.viewList);
          this.conditionAfter = conditionAfter;

          const conditionBefore = this.store.createFragment('fragment-condition');
          conditionBefore.set('field', field);
          conditionBefore.set('operator', 'is before');
          conditionBefore.set('value', info.end);
          conditionBefore.set('smartView', this.args.viewList);
          this.conditionBefore = conditionBefore;

          this.args.addCondition(conditionAfter, true);
          this.args.addCondition(conditionBefore, true);

          await this.args.fetchRecords({ page: 1 });

          successCallback(
            this.args.records?.map(appointment => ({
              id: appointment.get('id'),
              title: appointment.get('forest-name'),
              start: appointment.get('forest-start_date'),
              end: appointment.get('forest-end_date'),
            })),
          );
        },
      },
    );

    this.calendar.render();
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.calendar {
  padding: 20px;
  background: var(--color-beta-surface);
  height: 100%;
  overflow: scroll;
}
.calendar .fc-day-header {
  padding: 10px 0;
  background-color: var(--color-beta-secondary);
  color: var(--color-beta-on-secondary_dark);
}
.calendar .fc-event {
  background-color: var(--color-beta-secondary);
  border: 1px solid var(--color-beta-on-secondary_border);
  color: var(--color-beta-on-secondary_medium);
  font-size: 14px;
}
.c-smart-view {
  display: flex;
  white-space: normal;
  position: absolute;
  bottom: 0;
  left: 0;
  right: 0;
  top: 0;
  background-color: var(--color-beta-surface);
}

template.hbs

<div id="{{this.calendarId}}" class="calendar" {{did-insert this.onInsert}}></div>

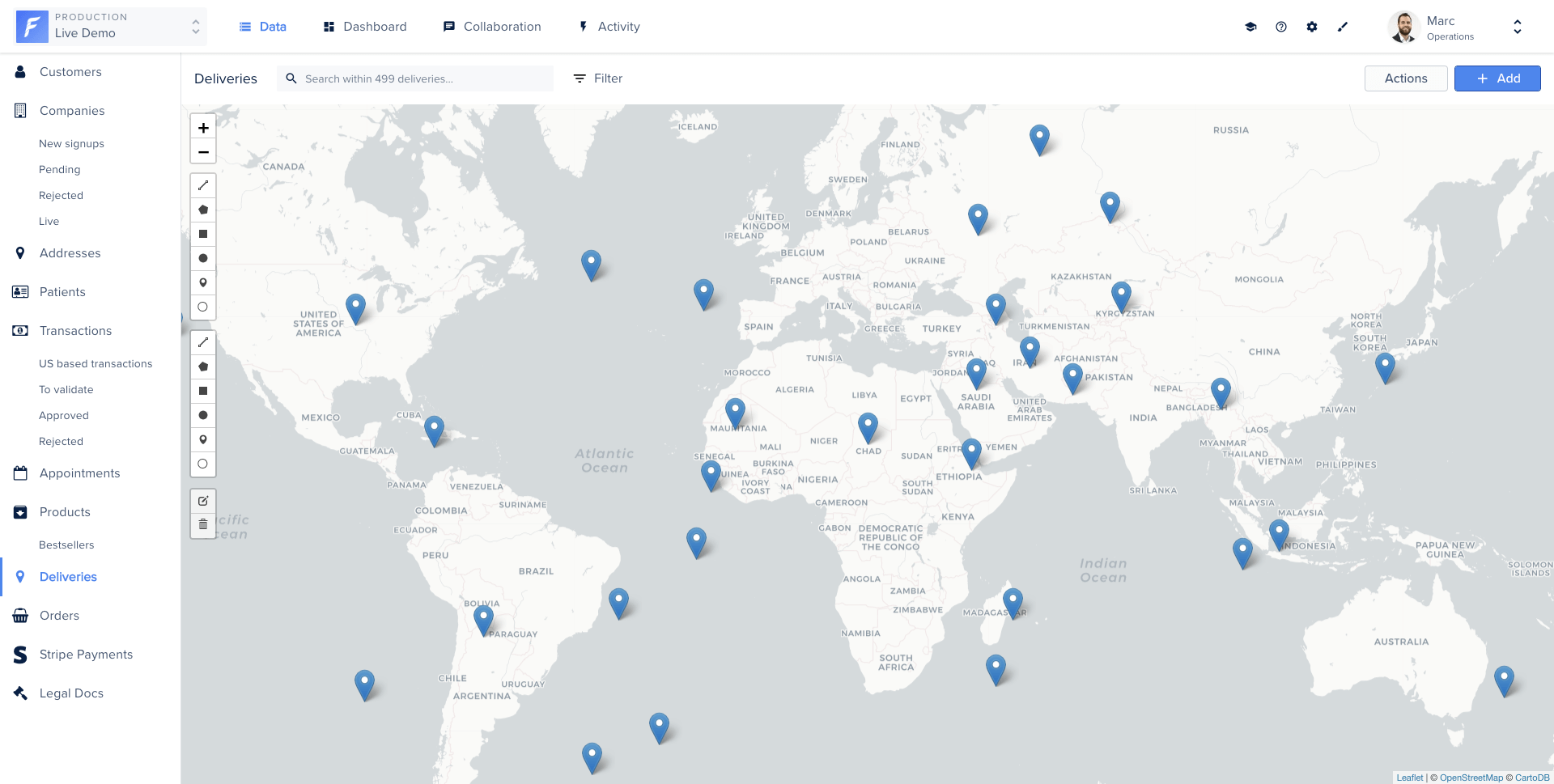

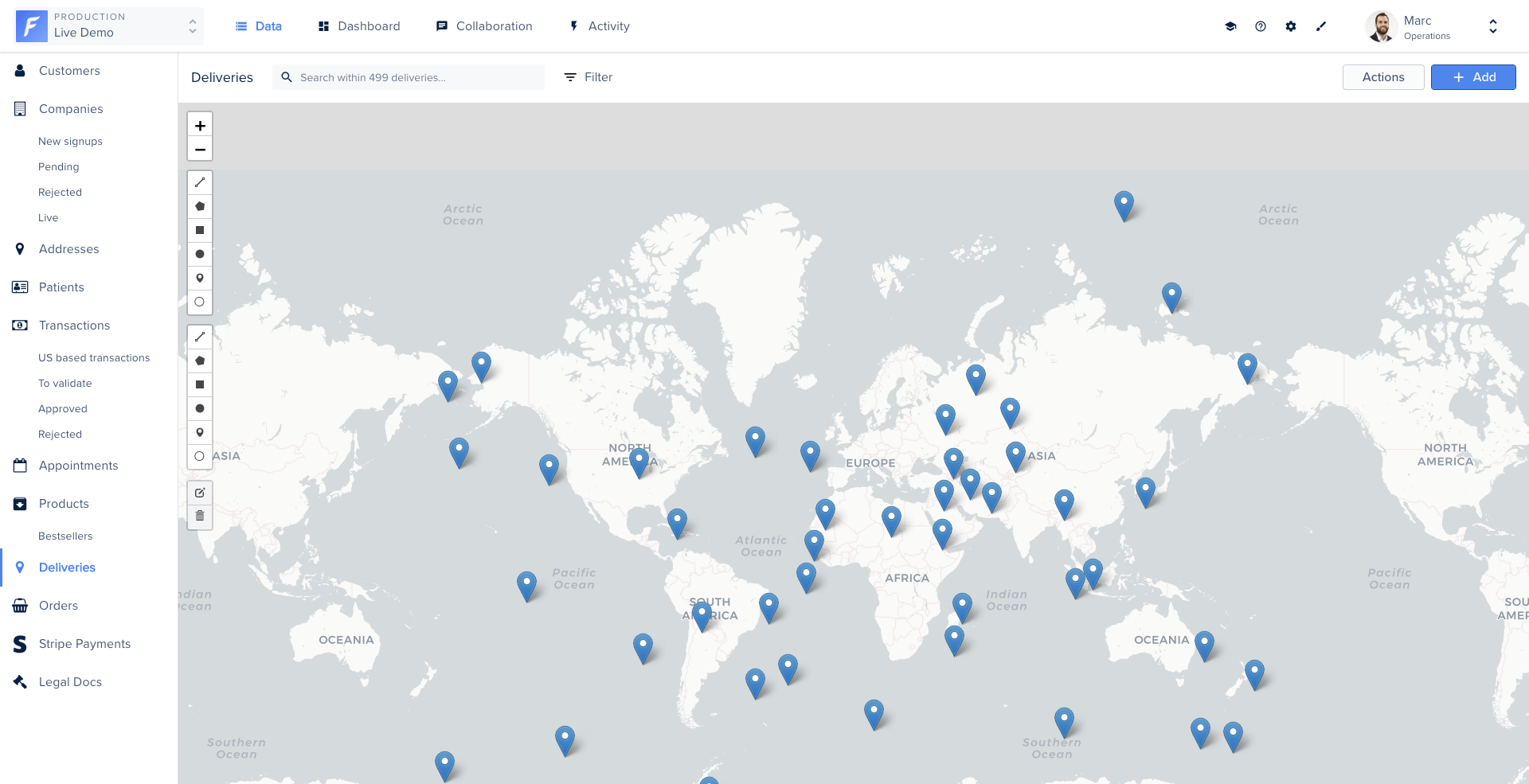

Map view

Displays geo-located records on an interactive map using Leaflet. Clicking a marker opens the corresponding record. New records can be created by placing a marker.

component.js

import Component from '@glimmer/component';
import { inject as service } from '@ember/service';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { guidFor } from '@ember/object/internals';
import {
  triggerSmartAction,
  deleteRecords,
  loadExternalStyle,
  loadExternalJavascript,
} from 'client/utils/smart-view-utils';

export default class extends Component {
  @service router;
  @service store;

  @tracked map = null;
  @tracked loaded = false;

  constructor(...args) {
    super(...args);
    this.loadPlugin();
  }

  get mapId() {
    return `map-${guidFor(this)}`;
  }

  async loadPlugin() {
    loadExternalStyle('//cdnjs.cloudflare.com/ajax/libs/leaflet/1.3.4/leaflet.css');
    loadExternalStyle('//cdnjs.cloudflare.com/ajax/libs/leaflet.draw/1.0.4/leaflet.draw.css');
    await loadExternalJavascript('//cdnjs.cloudflare.com/ajax/libs/leaflet/1.3.4/leaflet.js');
    await loadExternalJavascript('//cdnjs.cloudflare.com/ajax/libs/leaflet.draw/1.0.4/leaflet.draw.js');
    this.loaded = true;
    this.displayMap();
  }

  @action
  displayMap() {
    if (!this.loaded) return;

    if (this.map) {
      this.map.off();
      this.map.remove();
      this.map = null;
    }

    const markers = [];
    this.args.records?.forEach(record => {
      markers.push([record.get('forest-lat'), record.get('forest-lng'), record.get('id')]);
    });

    this.map = new L.Map(this.mapId);

    const osmUrl = 'https://cartodb-basemaps-{s}.global.ssl.fastly.net/light_all/{z}/{x}/{y}.png';
    const osmAttrib = '&copy; <a href="http://www.openstreetmap.org/copyright">OpenStreetMap</a> &copy; <a href="http://cartodb.com/attributions">CartoDB</a>';
    const osm = new L.TileLayer(osmUrl, { attribution: osmAttrib });
    const drawnItems = new L.FeatureGroup();
    this.map.addLayer(drawnItems);

    const drawControl = new L.Control.Draw({
      draw: { polygon: false, polyline: false, rectangle: false, circle: false, circlemarker: false, marker: true },
      edit: { featureGroup: drawnItems },
    });

    this.map.setView(new L.LatLng(48.8566, 2.3522), 2);
    this.map.addLayer(osm);
    this.map.addControl(drawControl);

    this.map.on(L.Draw.Event.CREATED, event => {
      const { layer, layerType: type } = event;
      if (type === 'marker') {
        const coordinates = event.layer.getLatLng();
        const newRecord = this.store.createRecord('forest_delivery', {
          'forest-is_delivered': false,
          'forest-lng': coordinates.lng,
          'forest-lat': coordinates.lat,
        });
        newRecord.save().then(savedRecord => {
          layer.on('click', () => {
            this.router.transitionTo(
              'project.rendering.data.collection.list.view-edit.details',
              this.args.collection.id,
              savedRecord.id,
            );
          });
        });
      }
      this.map.addLayer(layer);
    });

    markers.forEach(([lat, lng, id]) => {
      const marker = L.marker([parseFloat(lat), parseFloat(lng)]).addTo(this.map);
      marker.on('click', () => {
        this.router.transitionTo(
          'project.rendering.data.collection.list.view-edit.details',
          this.args.collection.id,
          id,
        );
      });
    });
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.c-map {
  width: 100%;
  height: 100%;
  z-index: 4;
}
.c-smart-view {
  display: flex;
  white-space: normal;
  position: absolute;
  bottom: 0;
  left: 0;
  right: 0;
  top: 0;
  background-color: var(--color-beta-surface);
}

template.hbs

<div
  id={{this.mapId}}
  class='c-map'
  {{did-insert this.displayMap}}
  {{did-update this.displayMap @records}}
></div>

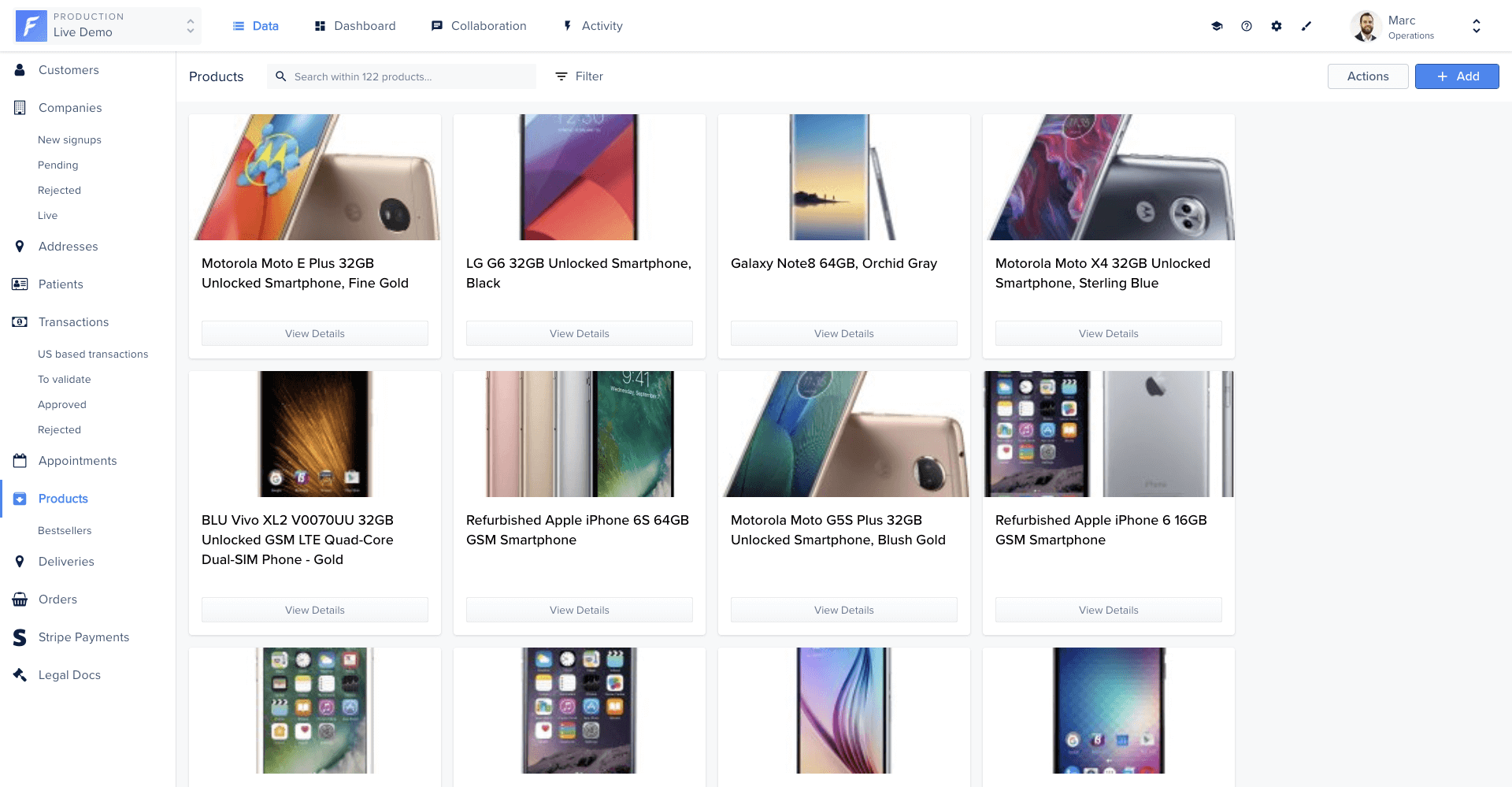

Gallery view

Displays records as a grid of images. Each image links to the corresponding record’s detail page.

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

style.css

.l-gallery-view-container {
  flex-grow: 1;
  width: 100%;
  height: 100%;
  overflow: hidden;
  position: relative;
}
.c-gallery {
  padding: 15px;
  overflow-y: auto;
  width: 100%;
  position: absolute;
  left: 0;
  top: 0;
  bottom: 40px;
}
.c-gallery__image {
  height: 182px;
  width: 182px;
  margin: 3px;
  border: 1px solid var(--color-beta-on-surface_border);
  border-radius: 3px;
  transition: all 0.3s ease-out;
}
.c-gallery__image:hover {
  transform: scale(1.05);
}

template.hbs

<div class='l-gallery-view-container'>
  <section class='c-gallery'>
    {{#each @records as |record|}}
      <LinkTo
        @route='project.rendering.data.collection.list.view-edit.details'
        @models={{array @collection.id record.id}}
        class='c-gallery__image-container'
      >
        <img class='c-gallery__image' src={{record.forest-picture}} />
      </LinkTo>
    {{/each}}
  </section>

  <Table::TableFooter
    @collection={{@collection}}
    @viewList={{@viewList}}
    @records={{@records}}
    @currentPage={{@currentPage}}
    @numberOfPages={{@numberOfPages}}
    @recordsCount={{@recordsCount}}
    @isLoading={{@isLoading}}
    @fetchRecords={{@fetchRecords}}
  />
</div>

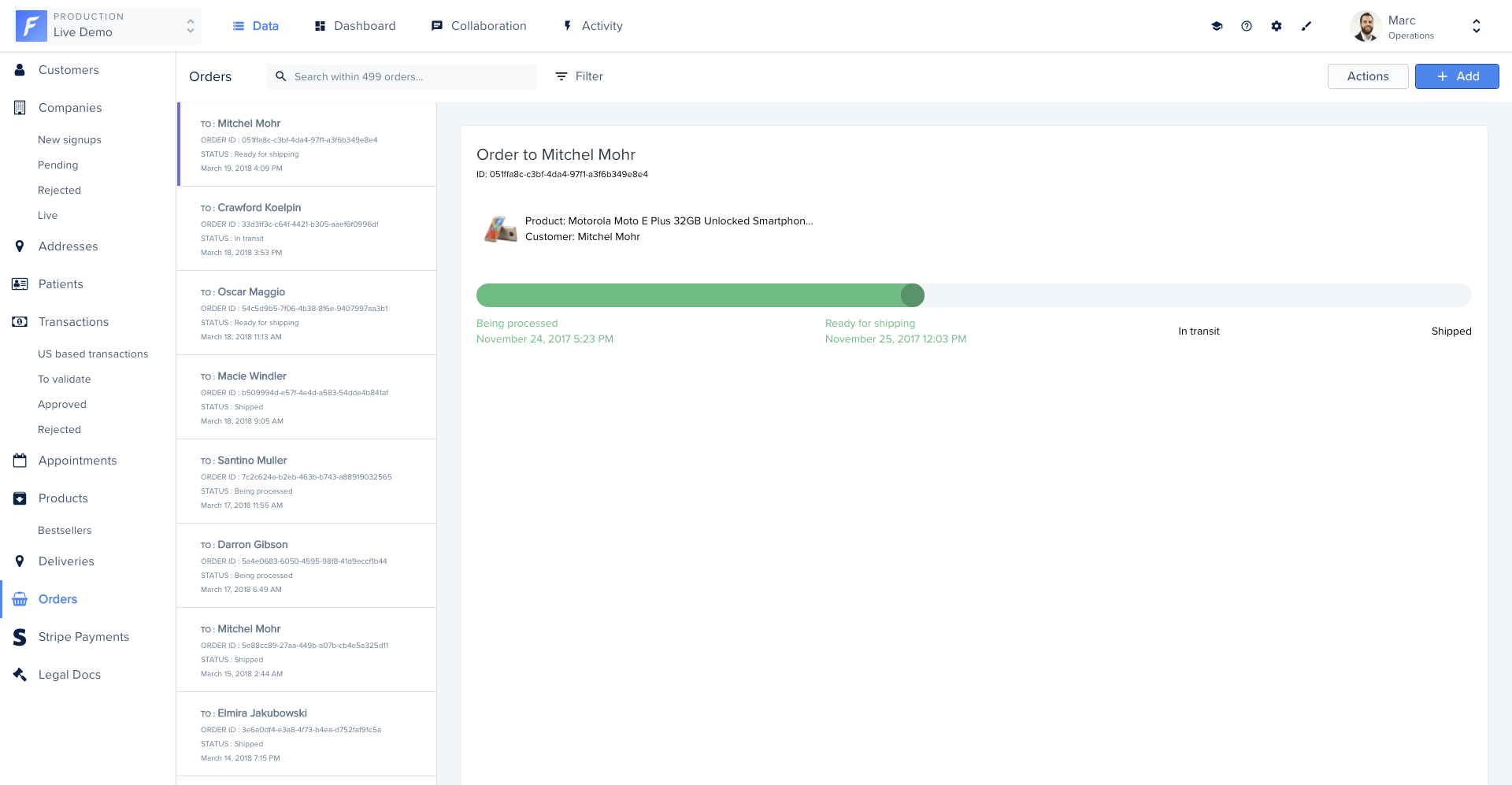

Shipping status view

Displays a master-detail layout: a scrollable list of orders on the left and a progress bar card on the right showing the shipping status of the selected order.

component.js

import Component from '@glimmer/component';
import { action } from '@ember/object';
import { tracked } from '@glimmer/tracking';
import { triggerSmartAction, deleteRecords } from 'client/utils/smart-view-utils';

export default class extends Component {
  @tracked currentRecord = null;

  get status() {
    switch (this.currentRecord?.get('forest-shipping_status')) {
      case 'Being processed': return 'one';
      case 'Ready for shipping': return 'two';
      case 'In transit': return 'three';
      case 'Shipped': return 'four';
      default: return null;
    }
  }

  @action
  setDefaultCurrentRecord() {
    if (!this.currentRecord) {
      this.currentRecord = this.args.records.firstObject;
    }
  }

  @action
  selectRecord(record) {
    this.currentRecord = record;
  }

  @action
  triggerSmartAction(...args) {
    return triggerSmartAction(this, ...args);
  }

  @action
  deleteRecords(...args) {
    return deleteRecords(this, ...args);
  }
}

template.hbs

<div class='wrapper-view' {{did-insert this.setDefaultCurrentRecord}}>
  <div class='wrapper-list'>
    {{#each @records as |record|}}
      <a href='#' {{on 'click' (fn this.selectRecord record)}}>
        <div class='list--item {{if (eq this.currentRecord record) "selected"}}'>
          <div class='list--item__values-left'>
            <h3><span>to:</span>
              {{record.forest-customer.forest-firstname}}
              {{record.forest-customer.forest-lastname}}</h3>
            <p><span>order ID</span>: {{record.id}}</p>
            <p><span>status</span>: {{record.forest-shipping_status}}</p>
          </div>
        </div>
      </a>
    {{/each}}
  </div>
  <div class='wrapper-card'>
    <div class='card--title'>
      <h2>Order to
        {{this.currentRecord.forest-customer.forest-firstname}}
        {{this.currentRecord.forest-customer.forest-lastname}}</h2>
      <small>ID: {{this.currentRecord.id}}</small>
    </div>
    <div class='gaugebar--bar'>
      <div class='gaugebar--bar__active {{this.status}}'></div>
    </div>
  </div>
</div>
